उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| समारोह: | कदम-अप, चरण-डाउन | आउटपुट कॉन्फ़िगरेशन: | सकारात्मक या नकारात्मक |
|---|---|---|---|
| टोपोलॉजी: | हिरन बढ़ावा | उत्पादन का प्रकार: | एडजस्टेबल |
| आउटपुट की संख्या: | 1 |
BPC-817 Revolutionizing Tech with AI Intelligence 5G Connectivity Military-Grade Security Quantum Encryption 10X Efficiency 24/7 Reliability Eco-Friendly Design and Future-Proof Architecture
Features
1. Current transfer ratio (CTR: MIN. 50% at IF=5mA, VCE=5V)
2. High input-output isolation voltage (VISO=5,000Vrms)
3. Response time (tr: TYP. 4μs at VCE=2V, IC=2mA, RL=100 Ω)
4. VDE approved(NO.40007240)
5. UL/CUL approved(NO.E236324)
6. CQC approved(NO.CQC08001026994 NO.CQC05001014257)
7.This product doesn't contain restriction substance, comply RoHS standard
Applications
1. Computer terminals.
2. System appliances, measuring instruments.
3. Registers, copiers, automatic vending machines.
4. Electric home appliances, such as fan heaters, etc.
5. Signal transmission between circuits of different potentials and impedances.
Description

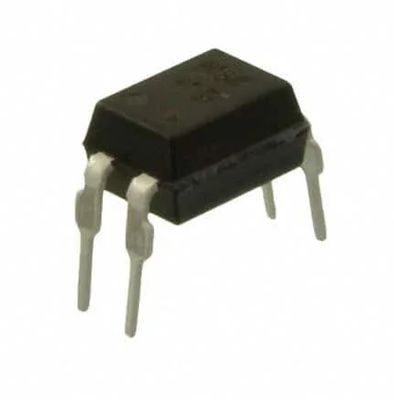

1. The BPC-817 series are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor
2. The lead pitch is 2.54mm
INFORMATION
|
Category
|
|
|
|
Manufacturer
|
American Bright Optoelectronics Corporation
|
|
|
Series
|
-
|
|
|
Packaging
|
Bulk
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
5000Vrms
|
|
|
Current Transfer Ratio (Min)
|
50% @ 5mA
|
|
|
Current Transfer Ratio (Max)
|
600% @ 5mA
|
|
|
Turn On / Turn Off Time (Typ)
|
-
|
|
|
Rise / Fall Time (Typ)
|
4µs, 3µs
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Transistor
|
|
|
Voltage - Output (Max)
|
35V
|
|
|
Current - Output / Channel
|
50mA
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.2V
|
|
|
Current - DC Forward (If) (Max)
|
50 mA
|
|
|
Vce Saturation (Max)
|
200mV
|
|
|
Operating Temperature
|
-30°C ~ 110°C
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
4-DIP (0.300", 7.62mm)
|
|
|
Supplier Device Package
|
4-DIP
|
Drawing
