TPS61088RHLR 2A High-Power Boost Converter with 2.5V-12V Input 95% Efficiency Ultra-Small QFN Low Noise Programmable Features Integrated Protection and Wide Applications

TPS61088RHLR 2A High-Power Boost Converter with 2.5V-12V Input 95% Efficiency Ultra-Small QFN Low Noise Programmable Features Integrated Protection and Wide Applications

andnbsp;

Features

andbull; 2.7-V to 12-V input voltage range

andbull; 4.5-V to 12.6-V output voltage range

andbull; 10-A switch current

andbull; Up to 91% efficiency at VIN = 3.3 V, VOUT = 9 V, and IOUT = 3 A

andbull; Mode selection between PFM mode and forced PWM mode at light load

andbull; 1.0-andmicro;A current into the VIN pin during shutdown

andbull; Resistor-programmable switch peak current limit

andbull; Adjustable switching frequency: 200 kHz to 2.2 MHz

andbull; Programmable soft start

andbull; Output overvoltage protection at 13.2 V

andbull; Cycle-by-cycle overcurrent protection

andbull; Thermal shutdown

andbull; 4.50-mm andtimes; 3.50-mm 20-pin VQFN package

andnbsp;

Applications

andbull; Portable POS terminal

andbull; Bluetoothandtrade; speaker

andbull; E-cigarette

andbull; Thunderbolt interface

andbull; Quick charge power bank

andnbsp;

Description

The TPS61088 is a high-power density, fully integrated synchronous boost converter with a 11-mandOmega; power switch and a 13-mandOmega; rectifier switch to provide a high efficiency and small size solution in portable systems. The TPS61088 has a wide input voltage range from 2.7 V to 12 V to support applications with single-cell or two-cell Lithium batteries. The device has 10-A switch current capability and is capable of providing an output voltage up to 12.6 V.

The TPS61088 uses adaptive constant off-time peak current control topology to regulate the output voltage. In moderate to heavy load condition, the TPS61088 works in pulse width modulation (PWM) mode. In light load condition, the device has two operation modes selected by the MODE pin. One is the pulse frequency modulation (PFM) mode to improve the efficiency and another one is forced PWM mode to avoid application problems caused by low switching frequency. The switching frequency in PWM mode is adjustable, ranging from 200 kHz to 2.2 MHz by an external resistor. The TPS61088 also implements a programmable soft-start function and an adjustable switching peak current limit function. In addition, the device provides 13.2-V output overvoltage protection, cycle-by-cycle overcurrent protection, and thermal shutdown protection.

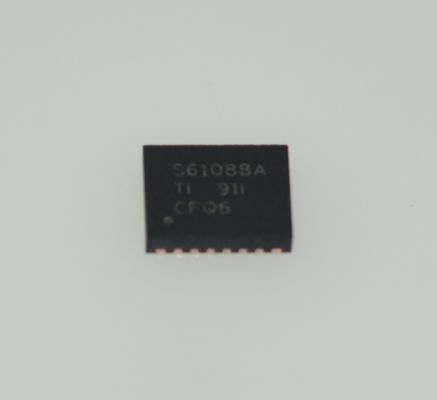

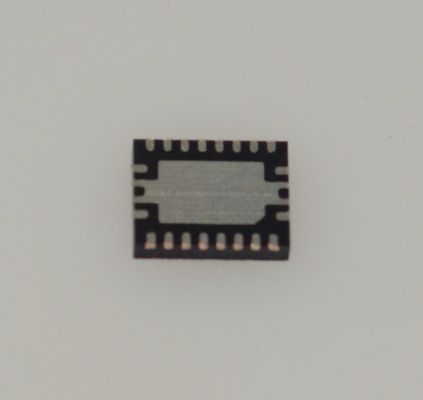

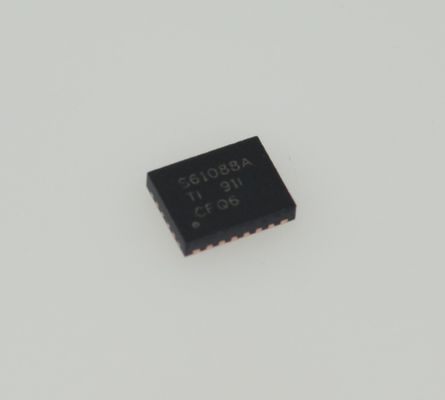

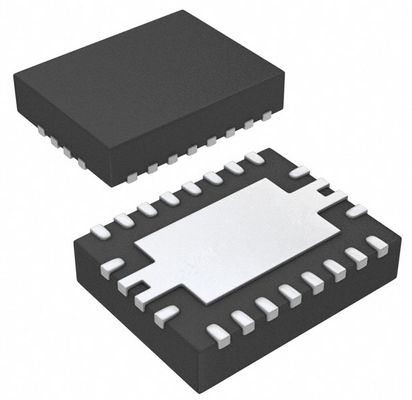

The TPS61088 is available in a 4.50-mm andtimes; 3.50-mm 20-pin VQFN package.
