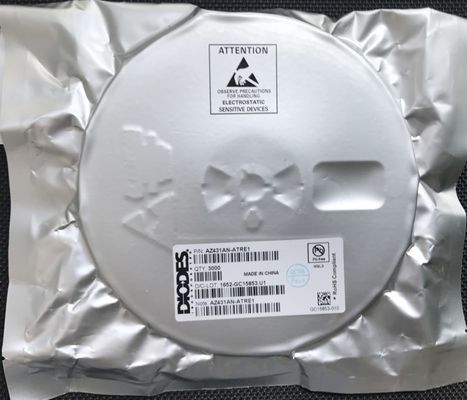

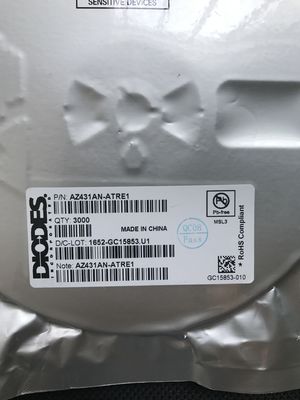

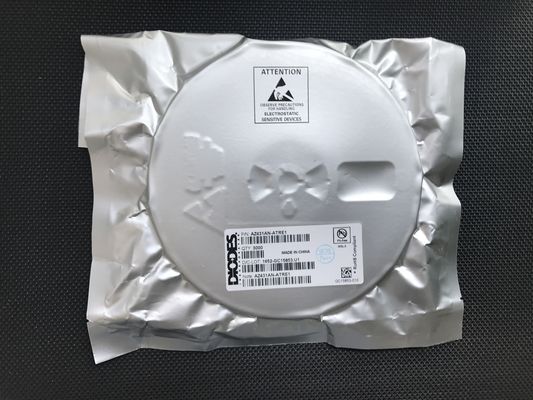

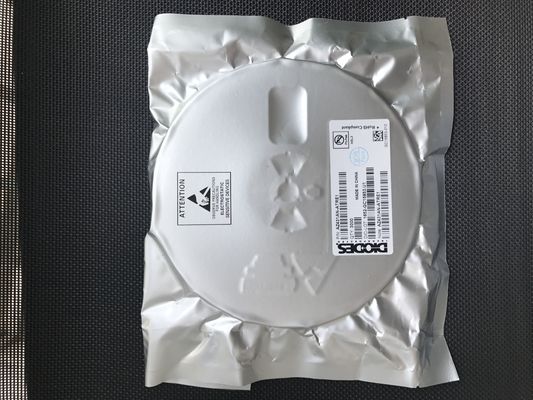

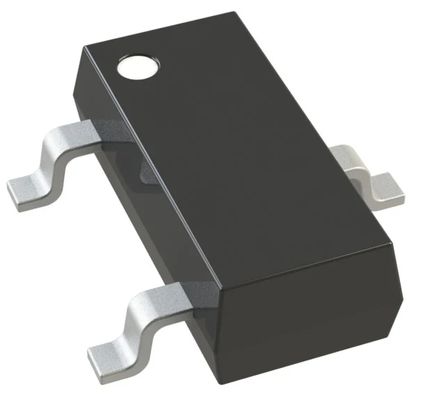

AZ431AN-ATRE1 2.5-36V Shunt Regulator with ±0.5% Precision 100mA Sink Low Impedance SOT-23-3 -40°C to +105°C AEC-Q100 Tape & Reel

AZ431AN-ATRE1 2.5-36V Shunt Regulator with ±0.5% Precision 100mA Sink Low Impedance SOT-23-3 -40°C to +105°C AEC-Q100 Tape & Reel

Features

 Programmable Precise Output Voltage from 2.5V to 36V

 High Stability under Capacitive Load

 Low Temperature Deviation: 4.5mV Typical

 Low Equivalent Full-range Temperature Coefficient with 20PPM/°C Typical

 Sink Current Capacity from 1mA to 100mA

 Low Output Noise

 Wide Operating Range of -40 to +125°C

 Lead-Free Packages: TO92, SOT23, SOT89

 Totally Lead-Free; RoHS Compliant (Notes 1 & 2)

 Lead-Free Packages, Available in “Green” Molding Compound: TO92, SOT23

Applications

 Charger

 Voltage Adapter

 Switching Power Supply

 Graphic Card

 Precision Voltage Reference

Description

The AZ431-A is a three-terminal adjustable shunt regulator with guaranteed thermal stability over a full operation range. It features sharp turn-on characteristics, low temperature coefficient and low output impedance, which make it ideal substitute for Zener diode in applications such as switching power supply, charger and other adjustable regulators.

The output voltage of AZ431-A can be set to any value between VREF (2.5V) and the corresponding maximum cathode voltage (36V).

The AZ431-A precision reference is offered in two voltage tolerance: 0.4% and 0.8%.

This IC is available in 3 packages: TO92 (Bulk or Ammo Packing), SOT23 and SOT89.

INFORMATION

Drawing

Our advantage :phones, PDA's, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
