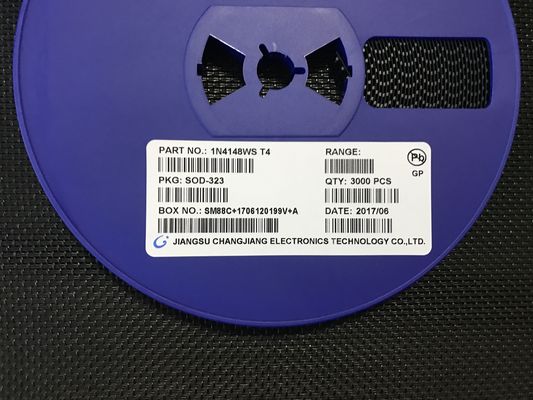

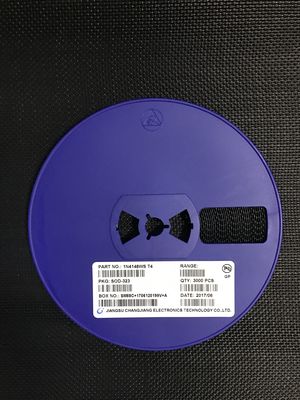

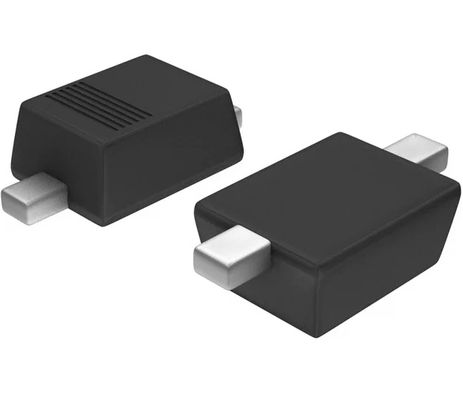

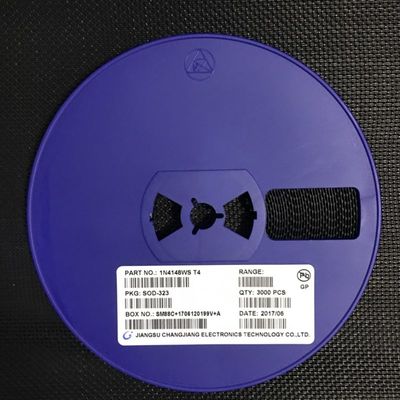

1N4148WS High-Speed Switching Diode with 100V Rating 150mA Current Ultra-Low 2pF Capacitance 4ns Recovery SOD-323 Miniature Package AEC-Q101 Qualified for Automotive and General-Purpose Apps
Features
•General Purpose Diodes
•Fast Switching Device (TRR < 4.0 ns)
•Very Small and Thin SMD Package
•Moisture Level Sensitivity 1
•Matte Tin (Sn) Lead Finish
•Green Mold Compound
•These Devices are Pb−Free and are RoHS Compliant
Applications
High-Speed Switching Circuits
Automotive Electronics (ECUs, Infotainment)
Portable & Consumer Electronics
Signal Demodulation and Clipping Circuits
Board-Level Polarity Protection
Description
The 1N4148WS is a reliable and versatile surface-mount silicon switching diode, designed for high-speed switching applications. Housed in a miniature SOD-323 package, it offers a compelling combination of fast switching performance, robust electrical characteristics, and automotive-grade reliability.
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Technology
|
|
|
|
Voltage - DC Reverse (Vr) (Max)
|
75 V
|
|
|
Current - Average Rectified (Io)
|
150mA
|
|
|
Voltage - Forward (Vf) (Max) @ If
|
1 V @ 10 mA
|
|
|
Speed
|
Small Signal =< 200mA (Io), Any Speed
|
|
|
Reverse Recovery Time (trr)
|
4 ns
|
|
|
Current - Reverse Leakage @ Vr
|
5 µA @ 75 V
|
|
|
Capacitance @ Vr, F
|
4pF @ 0V, 1MHz
|
|
|
Mounting Type
|
|
|
|
Package / Case
|
|
|
|
Supplier Device Package
|
SOD-323F
|
|
|
Operating Temperature - Junction
|
150°C (Max)
|
|
|
Base Product Number
|
Drawing
