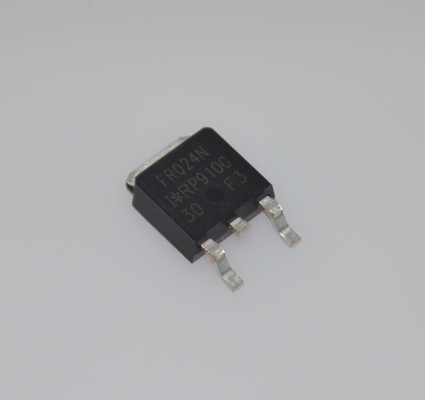

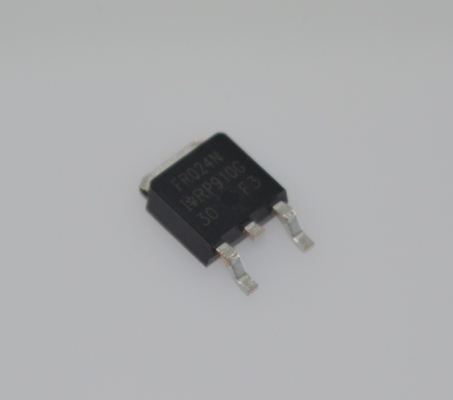

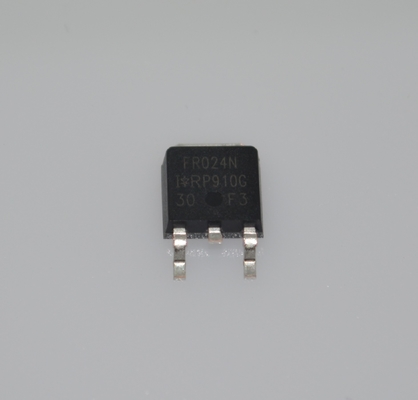

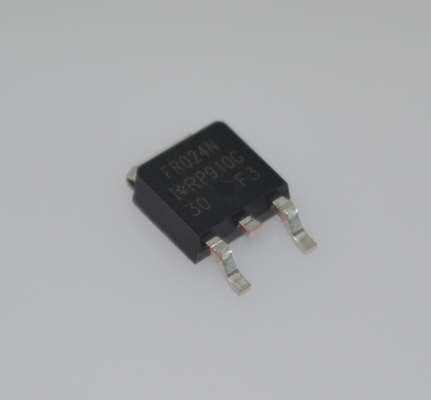

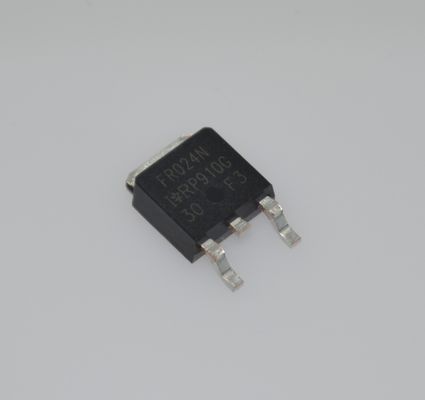

IRFR024NTRPBF 55V 24A N-Channel MOSFET with Ultra-Low 0.028Ω RDS(on), Fast Switching Speed 100% Avalanche Tested Compact DPAK Package Lead-Free & RoHS Compliant
Applications
Brushed Motor drive applications
BLDC Motor drive applications
Battery powered circuits
Half-bridge and full-bridge topologies
Synchronous rectifier applications
Resonant mode power supplies
OR-ing and redundant power switches
DC/DC and AC/DC converters
DC/AC Inverters
Benefits
Improved Gate, Avalanche and Dynamic dV/dt
Ruggedness Fully Characterized Capacitance and Avalanche SOA
Enhanced body diode dV/dt and dI/dt Capability
Lead-Free
RoHS Compliant, Halogen-Free
Features
Electrical characteristics
N-Channel MOSFET, enhancement mode
Drain-Source Voltage (V<sub>DSS</sub>): 55V
Continuous Drain Current (l<sub>D</sub>):
34A (@25°C)
23A (@100°C)
On-Resistance(R<sub>DS(on)</sub>):
0.0242 (typical, V<sub>GS</sub>=10V)0
0.0282(max, V<sub>GS</sub>=10V)
Gate Threshold Voltage (V<sub>Gs(th)</sub>): 2V ~ 4V
Max Gate-Source Voltage (V<sub>Gs</sub>): ±20V
switching Characteristics
Input Capacitance (C<sub>iss</sub>): 1100pF (typical)
Output Capacitance (C<sub>oss</sub>): 300pF (typical)
Reverse Transfer Capacitance (C<sub>rss</sub>): 80pF (typical)
Turn-On/Off Delay Time (t<sub>d(on)</sub>/t<sub>d(off)</sub>): Nanosecond-level,suitable for high-frequency switching
Thermal Performance
Max Power Dissipation (P<sub>D</sub>): 48W(@25°C)
Thermal Resistance (R<sub>θJA</sub>): 62°C/W (without heatsink)
Operating Temperature Range: -55°C ~ +175°C
Package & Mechanical Characteristics
Package Type: TO-252 (DPAK), surface mount
RoHS Compliant, lead-free design
Low Parasitic Inductance, optimized for PCB layout
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
FET Type
|
|
|
|
Technology
|
|
|
|
Drain to Source Voltage (Vdss)
|
55 V
|
|
|
Current - Continuous Drain (Id) @ 25°C
|
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V
|
|
|
Rds On (Max) @ Id, Vgs
|
75mOhm @ 10A, 10V
|
|
|
Vgs(th) (Max) @ Id
|
4V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
20 nC @ 10 V
|
|
|
Vgs (Max)
|
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
370 pF @ 25 V
|
|
|
FET Feature
|
-
|
|
|
Power Dissipation (Max)
|
45W (Tc)
|
|
|
Operating Temperature
|
-55°C ~ 175°C (TJ)
|
|
|
Grade
|
-
|
|
|
Qualification
|
-
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Supplier Device Package
|
TO-252AA (DPAK)
|
|
|
Package / Case
|
|
|
|
Base Product Number
|
Drawing
