CSD17304Q3
FEATURES
• Optimizedfor5VGateDrive
• UltralowQgandQgd
• LowThermalResistance
• AvalancheRated
• PbFreeTerminalPlating
• RoHSCompliant
• HalogenFree
• SON3.3-mm×3.3-mmPlasticPackage
APPLICATIONS
• NotebookPointofLoad
• Point-of-LoadSynchronousBuckin
Networking,Telecom,andComputingSystems
DESCRIPTION

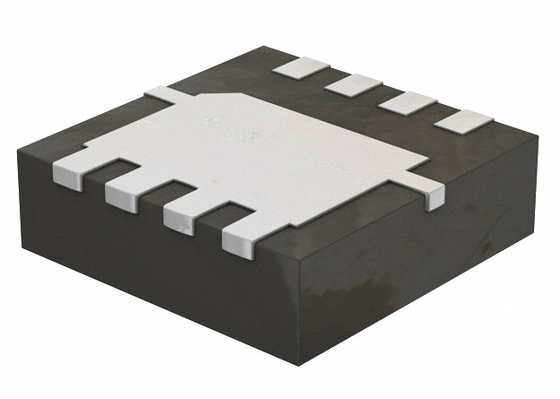

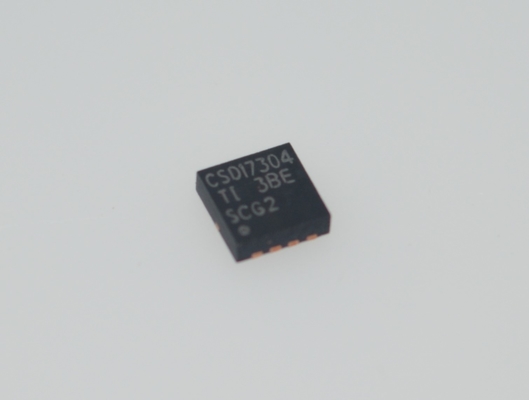

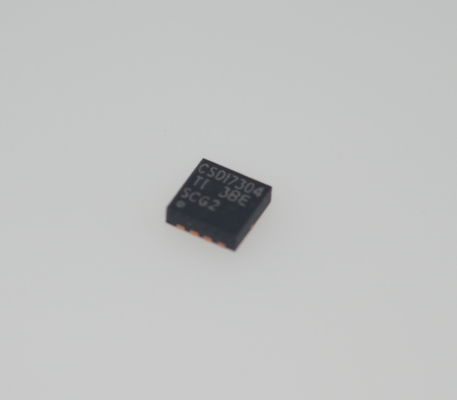

The CSD17304Q3 is a 30V N-channel NexFET™ power MOSFET from Texas Instruments (TI), featuring an advanced SON 3.3x3.3mm package. Designed for high-current, high-efficiency power conversion, its ultra-low Rds(on) (2.2mΩ) and 60A continuous current capability make it ideal for automotive electronics, industrial power systems, and motor drives.
✔ 80% smaller than TO-220 packages
✔ 60% lower conduction loss (vs. 5mΩ MOSFETs)
✔ Supports 1MHz PWM switching
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
FET Type
|
|
|
|
Technology
|
|
|
|
Drain to Source Voltage (Vdss)
|
30 V
|
|
|
Current - Continuous Drain (Id) @ 25°C
|
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
3V, 8V
|
|
|
Rds On (Max) @ Id, Vgs
|
7.5mOhm @ 17A, 8V
|
|
|
Vgs(th) (Max) @ Id
|
1.8V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
6.6 nC @ 4.5 V
|
|
|
Vgs (Max)
|
+10V, -8V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
955 pF @ 15 V
|
|
|
FET Feature
|
-
|
|
|
Power Dissipation (Max)
|
2.7W (Ta)
|
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
|
Grade
|
-
|
|
|
Qualification
|
-
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Supplier Device Package
|
8-VSON-CLIP (3.3x3.3)
|
|
|
Package / Case
|
|
|
|
Base Product Number
|
Drawing
